4GP30T-L4000

4GP30T-L4000

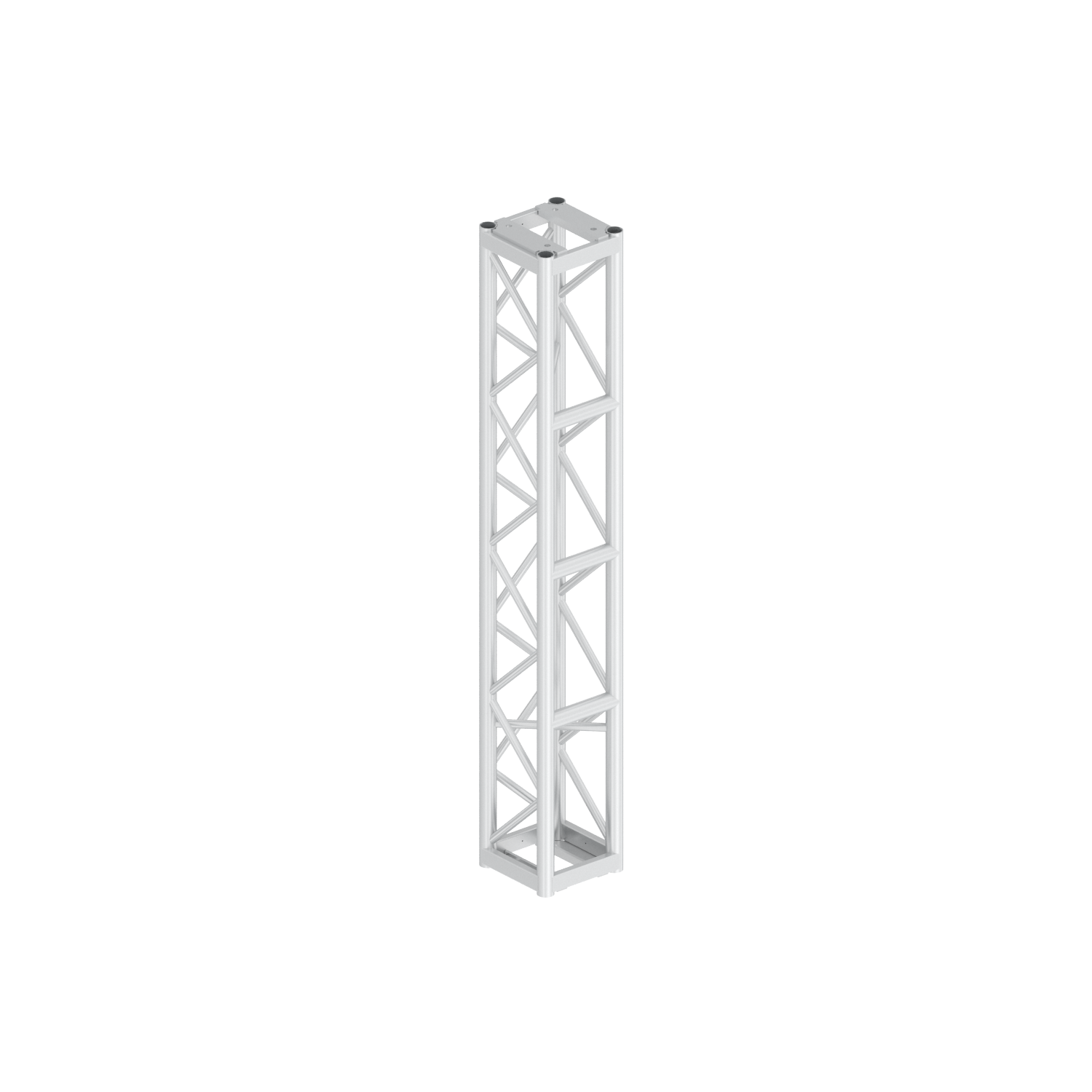

4m tower section for use with the TT3 Tower.

Call us for offer

Get your quote

Technical information

Code: 4GP30T-L4000
4 m tower section
Old code: JT B3540

Download PDF

TT3

Basic info

4m tower section for use with the TT3 Tower. Made from 6082-T6 aluminium.
• 30.5cm square ground support tower
• Serves as lifting medium for a variety of JTE truss
  (30.5 x 30.5 cm to heavy-duty)
• Provides support for truss rigs where flying points are not
  strong enough or in the wrong place
• Each tower can lift up to 2 tons (incl. self weight of truss rig
  and motors) to a height of 10 metres
• Raises and lowers truss rig via an electric hoist rigged into the
  truss in double fall operation (passing over roller beam
  at top of tower)
• Specially designed hinge section allows horizontal assembly
  of towers at truss top level then swung down and locked in
  vertical operating position
• 50 x 4 mm main chords
• 25 x 3 mm diagonals
• Made from 6082-T6 aluminium
• Bolted construction eliminates issues related to weld heat
  affected zones
