Mobiltechlifts ML4 lifts your heaviest loads

Mobiltechlifts ML4 lifts your heaviest loads

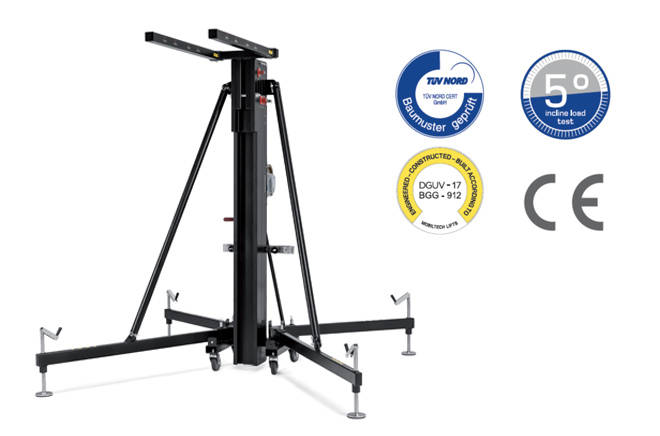

The ML4 from our Mobiltechlifts brand is your "extra duty” lifting partner that packs 270 kg (595.95 lbs) of loading capacity into 6.5 m (21.33’). Its durable construction and reliable operation deliver the safety you require when lifting your heaviest loads.

Key Benefits:
- Rubber pads on outriggers provide increased traction and surface protection
- Height adjustable feet feature high profile, trapezoidal threading (0.45 m / 1.48’)
- 0.5 m & 1 m (1.64’ & 3.28’) fork lengths with allowable load vs. load position indicators
- Unique pin locking system and steel pulleys protect your hardware against damage and ensure safe operation at all times
- 5 degree incline tested in accordance with DIN 58950
- Base is pre-equipped with attachment points for horizontal installation of wheels for easy transport
- Level indicator
- Height indicator
- Optional winch cover
- DGUV-17
- TUV Nord certified

Technical Specifications
Load:  270 kg (595.95 lbs)
Weight:  128 kg (282.2 lbs)
Max. Height:  6.5 m (21.33’)
Min. Height:  1.98 m (6.5’)
Footprint:  1.97 x 1.82 m (6.46’ x 5.97’)
