HCL5111F

HCL5111F
Side clamp designed to fit 42mm (1 7/8") to 51mm (2") truss tubes

Call us for offer

Get your quote

Technical information

Weight: 0.65 kg (1.43 lbs)
SWL: 780 kg (1720 lbs)

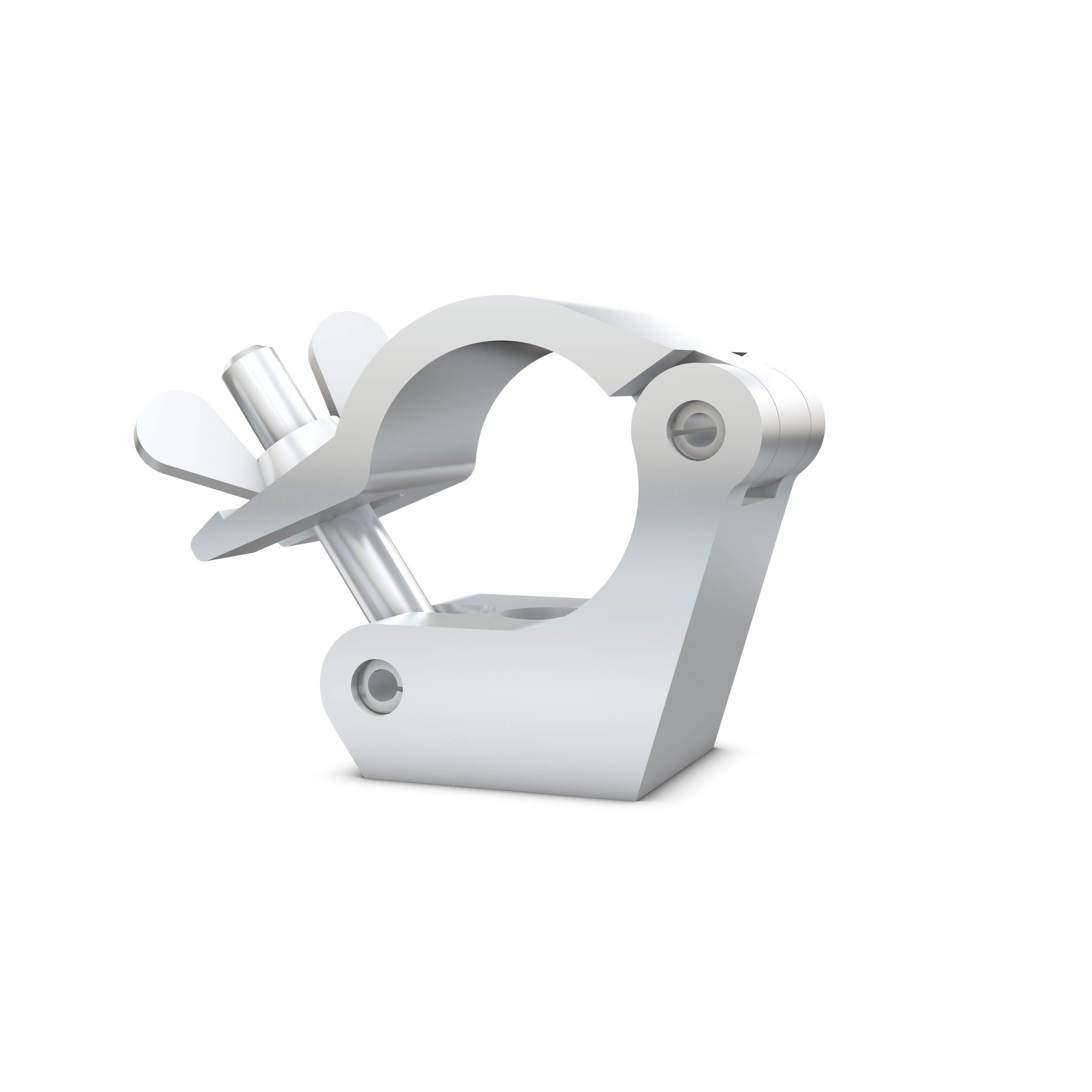

Side clamp

Basic info

Side clamp designed to fit 42mm (1 7/8") to 51mm (2") truss tubes and compatible with JT30/JT30H/JT40H/GP30/GP52/ST30/ST52/ST76R/LP60 truss series. Made from precision extruded high tensile aluminium alloy.
• Designed to fit 42mm (1 7/8’’) to 51mm (2’’) truss tubes
• Precision extruded high tensile aluminium alloy
• Compatible with JT30/JT30H/JT40H/GP30/GP52/ST30/
   ST52/ST76R/LP60 truss series
• CE certified
• Rated with Safety Factor 8:1 DGUV17/BGVC1 (SWL)
• Mounting hole for up to 13mm (1/2’’) bolts
• Polished surface with micro-percussion markings
• Powder coated versions available on request
