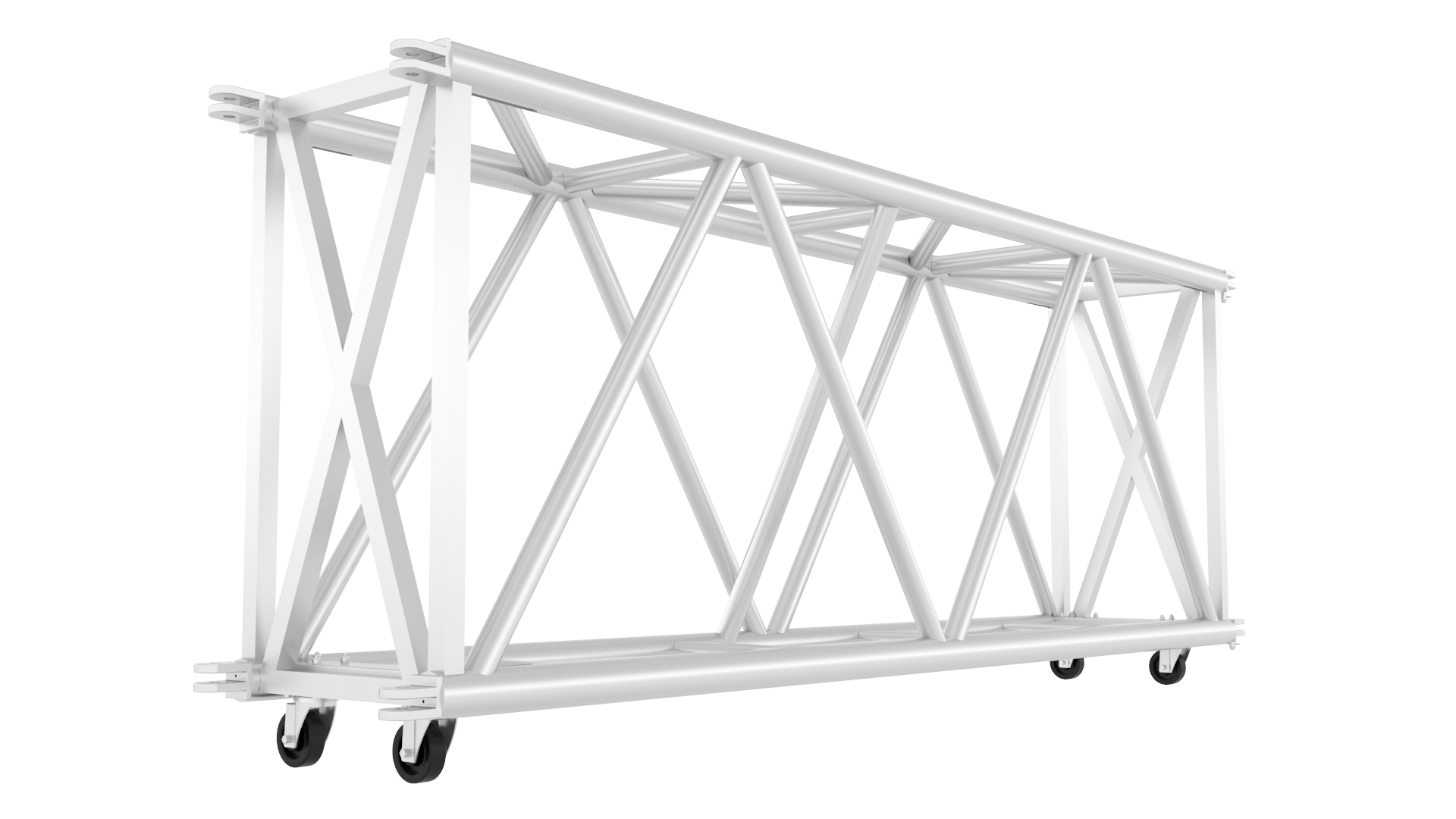

SMT107R

Designed for monumental load bearing capacity, the SM107R SuperMega Truss has a maximum span of 39m (127')  without deflection, up to 48m (157') with limited deflection, and serve as the base of a "Mother Grid" or large roof system

Call us for offer

Get your quote

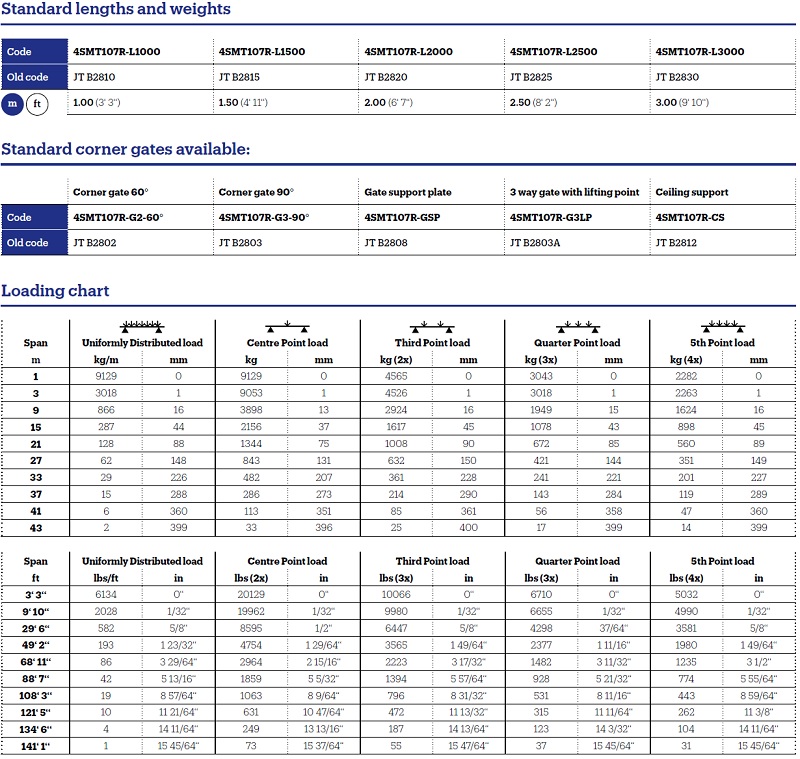

Technical information


Download PDF

Basic info

Designed for monumental load bearing capacity, the SM107R SuperMega Truss has a maximum span of 39m (127')  without deflection, up to 48m (157') with limited deflection, and serve as the base of a "Mother Grid" or large roof system. Made from EN-AW 6082T6 aluminium, it features 76 x 4mm (3" x 5/32") main chords and 38 x 3mm (1 1/2' x 7/64") diagonals. The extra heavy-duty fork is a scaled up version of the SuperTruss fork, which ensures easy connections and superior strength. Manoeurability is ensured by the standard fitting of castors.
