JT30 TRIO TRUSS

The JT30 TRIO is a medium duty aluminium truss that features conical connectors for quick, simple and secure assembly.
Select format:
QUATROTRIODUO
Select load:

Call us for offer

Get your quote

Technical information



Download PDF

Basic info

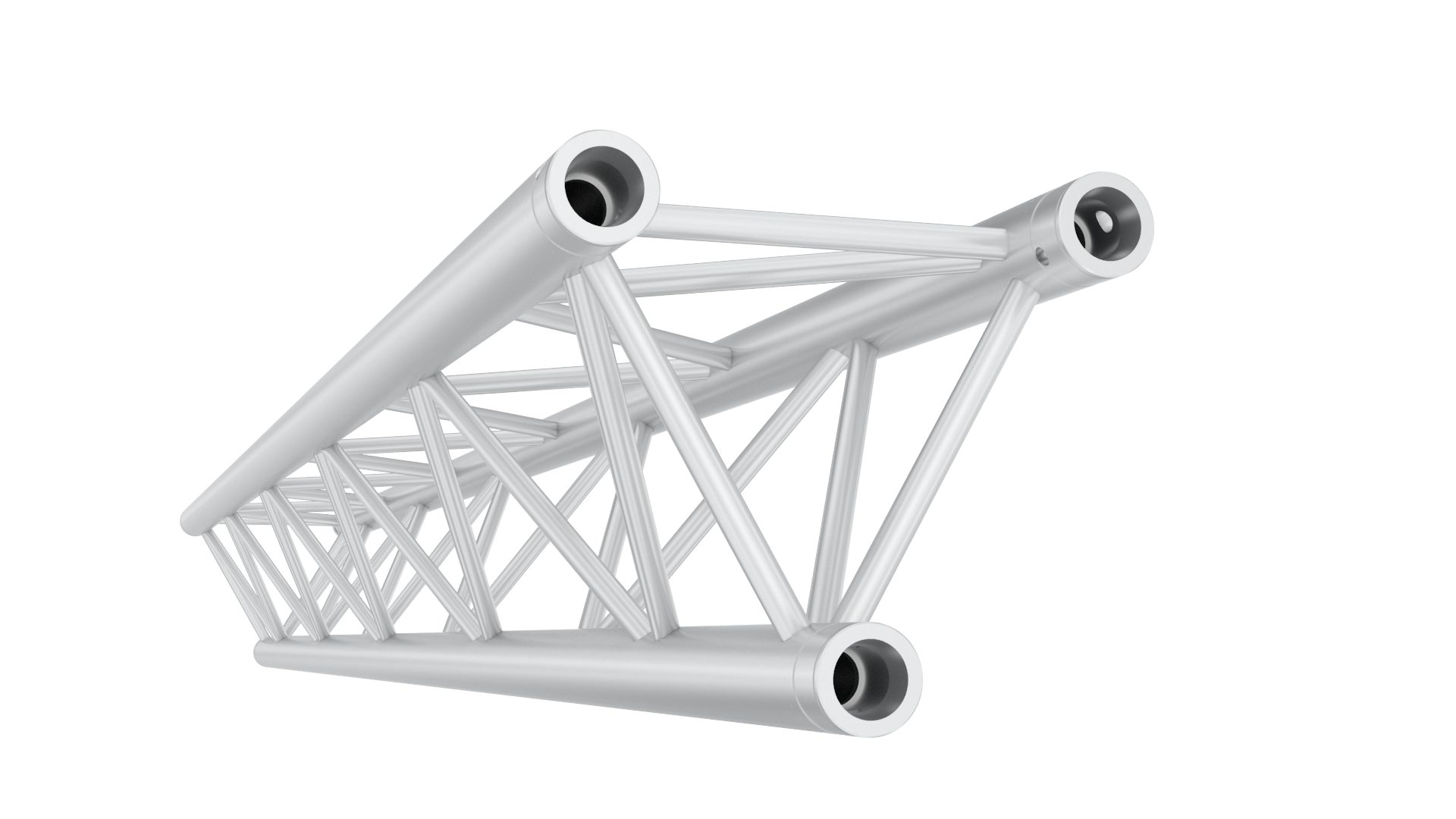

The JT30 TRIO truss is made with high quality 50mm (2") aluminium tubes and features conical connectors for quick, simple and secure assembly. It is also designed with an anti-twist end brace for extreme durability. Extended free-span up to 20m (65') and loading characteristics allow it to be used for more heavy-duty requirements. JT30 DUO is compatible with JTCELL 200/400/600 series cell clamps and Xtruss accessories. Made from EN-AW-6082 T6. Powder coat colour finish available on request.
• High quality 50 mm (2’’) aluminium tubes
• Conical connectors for quick, simple and secure assembly
• Anti-twist end brace for extreme durability
• Extended free-span up to 20 m (65’) and loading characteristics
• Compatible with JTCELL200 / 400 /  600 seriescell clamps
• Compatible with Xtruss accessories
• Powder coat colour finish available on request
